BSmarter POS Printer Range

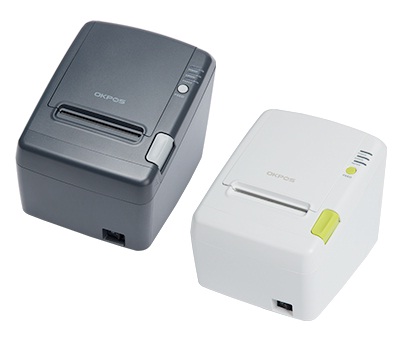

OKPOS OK30 (Thermal Printer)
Compact and Diverse Usage- K3 series are receipt printers highlighting compact, simple and soft image
- With a versatile design, OK30 is available in black and white colors
- It also supports an interface which provides serial and USB at the same time so that you are able to utilize it more conveniently
Read More... manufacturer's home page...
| Item | Specification | |
|---|---|---|
| Printing | Method | Direct Thermal |
| Speed | Max. 200mm/sec | |
| Width | 72mm(576 Dots/Line) | |
| Resolution | 180DPI | |
| Paper | Type | Thermal Paper |
| Width | 50mm ~ 82.5mm | |
| Thickness | 0.06mm ~ 0.09mm | |
| Roll Diameter | Max. 80mm | |
| Roll Core Inner | 12.5mm ± 0.5mm | |
| Reliability | TPH Life | 160km |
| MCBF | 60,000,000 Lines | |
| Auto Cutter | 1,500,000 cuts (Guillotine) | |
| Sensor | Standard | Paper End, Paper Low, Cover Open |
| Option | Black Mark Sensor | |
| Interface | USB(B type) + Serial (9P + RJ45 Modular)/ Centronics Parallel/ Ethernet / 25Pin Serial / WLAN Card |
|
| Emulation | ESC/POS Command Compatible | |
| Driver | Windows Printer Driver, ( 7, XP, 2000, 2003, VISTA), WEPOS, OPOS, Linux, JavaPOS ) | |
| Paper | Type | Exterrnal SMPS |
| AC | 100 ~ 240V 50/60 Hz | |
| DC | 24V / 1.5A | |
| Temperature | Operation | 0 ~ 45 |
| Storage | -20 ~ 60 | |
| Dimension | 155 x 197 x 152 mm (W x D x H) | |
| Weight | 1.6kg | |
| Color | White, Black | |

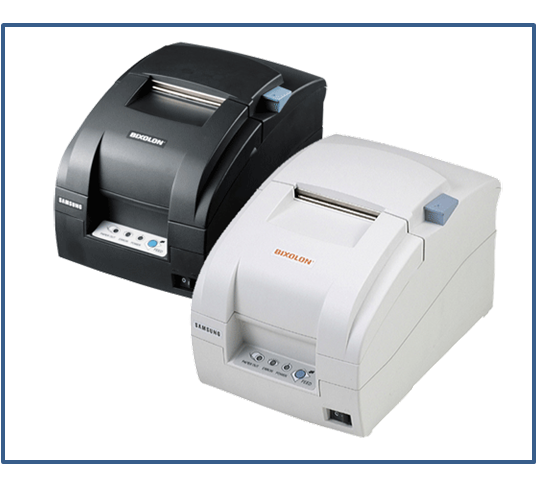

SRP-275II(Dot Matrix Printer)
The SRP-275 is the most popular Dot Matrix printer of the BIXOLON Samsung mini printer line-up throughout the world- High Speed Dot Matrix Printing
- Build in power supply
- Fast print speed 5.1LPS
Read More...
|
Printing Method |
Thermal Line Dot method |
|
|
Print Speed |
Max. 250 mm/sec |
|
|
Resolution |
180 Dpi (203Dpi available, special order only) |
|
|
Paper Size |
width 80 mm, Ø up to 83 mm |
|
|
Column Capacity |
Font A: 42 Columns |
|
|
Font B: 56 Columns |
||
|
Character Set |
Alpha Numeric Character: 95 |
|
|
Extended Graphics: 128 X 37 pages |
||
|
International Characters: 32 |
||
|
Character Size |
Font A: |
1.25 x 3 mm (12 x 24 dots) |
|
Font B: |
0.88 x 3 mm (9 X 24 dots) |
|
|
Emulation |
ESC/POS |
|
|
Bar-code type |
1D: UPC-A/E, EAN-13/8, ITF, Code 39, Code 128, CODABAR, Code 93 2D: PDF417, QR-Code |
|
|
Data input Buffer |
4 Kb |
|
|
Memory |
16 Kbytes |
|
|
Interface |
Serial |
RS-232C |
|
RS-485 |
||
|
Unidirectional Parallel |
IEEE 1284 |
|
|
USB |
USB 2.0 (fitted as standard) |
|
|
Ethernet |
10/100 | |
|
Drawer Kick-out |
2 drawers through 1 RJ12 Connector |
|
|
Power |
24 DCV +/- 7%, 2.5A, External power supply |
|
|
External Dimensions (WxDxH) |
145 x 195 x 146 mm |
|
|
Reliability |
Print Head |
150 Km |
|
Mechanism |
70,000,000 Lines |
|
|
Auto Cutter |
1.8 million cuts |
|
|
Safety Standards |
UL, C-UL, FCC Class A, TUV-GS, CE Marking |
|
|
Operating Temperature |
0 ~ 45 °C |
|

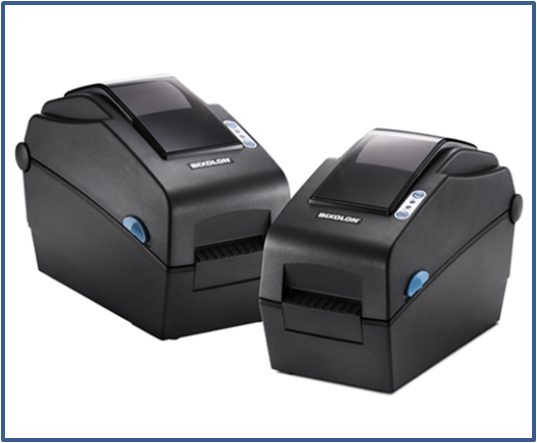

SLP-DX220(Label Printer)
The BIXOLON SLP-DX220 new direct thermal label printer offers a reliable label printing solution in the marketplace- High Speed Thermal Label Printer
- Standard with Serial & High Speed USB 2.0 interface
- Different language support, SLCS, EPL II, ZPL II
- 128MB Flash Memory & 64MB SDRAM
Read More...
|
Printing Method |
Thermal Transfer or Direct Thermal Printing |
|
|
Print Speed |
Max. 150 mm/sec (6 Inches/sec) |
|
|
Resolution |
203 dpi (8 dot/mm) |
|
|
Paper |
Types: Gap, Notch, Black Mark, Continuous, Fan-Fold |
|
|
Width: 25~116 mm |
||
|
Core: 25.4~38.1 mm |
||
|
OD: Internal Ø 130 mm, External Ø 220 mm |
||
|
Ribbon |
Type: Wax, Wax/Resin, Resin (Outside Type) |
|
|
Width: 33~110 mm |
||
|
Length: Max. 300 m |
||
|
Core ID: 12.5, 25.4 mm |
||
|
Character Set |
Alpha Numeric Character: 96 |
|
|
Extended Character: 128 x 23 Pages |
||
|
International Character: 22 |
||
|
Resident Bitmap Fonts:10 |
||
|
Graphic |
PCX & BMP |
|
|
Bar-code type |
1D Codes:EAN-8, EAN-13, UPC-A/E, ITF, Code 39, Code 128, Code 93, Interleave 2 of 5, Coda Bar 2D Codes: QR Code, Maxicode, Datamatrix & PDF417 |
|
|
Emulation |
SLCS, EPLII, ZPLII, DPL & CPL |
|
|
Sensor |
Transmissive Sensor, Reflective Sensor (position Adjustable), Ribbon End, Head Open Sensor |
|
|
Receive Buffer Size |
256 Kbyte |
|
|
NV Image |
64 Kbyte |
|
|
Interface |
Serial |
RS-232C |
|
Unidirectional Parallel |
IEEE 1284 |
|
|
USB |
|
|
|
Ethernet |
Optional |
|
|
Power |
24 DCV, 3.75A, External power supply |
|
|
External Dimensions (WxDxH) |
214 x 310 x 200 mm |
|
|
Weight |
Approx. 5.7 Kg |
|
|
Warranty |
Printer Unit |
12 Months |
|
Head |
6 Months |
|
|
Auto Cutter Option |
6 Months |
|
|
Safety Standards |
UL, C-UL, FCC Class A, TUV-GS, CE Marking |
|

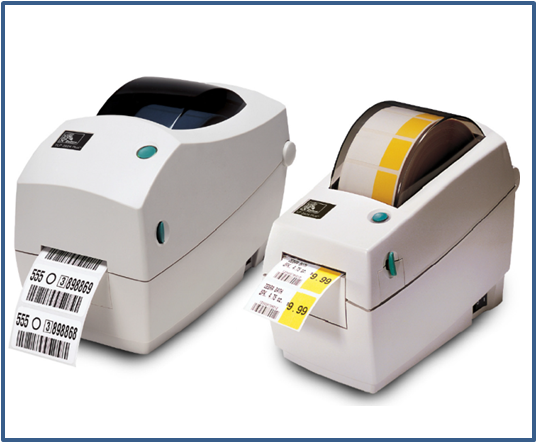

LP/TLP 2824 Plus(Label Printer)
A Powerful, Ultra-Compact Printer Better Performance, More FlexibilityRead More...
| Specifications | LP/TLP 2824 Plus |
|---|---|
| Resolution | 203 dpi (8 dots/mm) |
| Memory | 8 MB SDRAM; 4 MB Flash |
| Print Width | 2.2" |
| Print Length | 39" |
| Print Speed | 4"/second |
| Media Sensors | Reflective, transmissive |
| Label and Liner Width Range | 1.00" to 2.36" |
| Maximum Label and Liner Length | 39" |
| Maximum Roll Diameter | 5" |
| Core Diameter | 1.0" and 1.5" |
| Media Thickness Range | 0.003" to 0.007" |
| Print Speed | 1.0" and 1.5" |
| Media Types | Black bar, black mark, continuous, continuous receipt, die-cut, gap, fanfold, linerless, notch, notch sensing, notched, perforated, receipt, roll-fed, tag, or tag stock |
| Operating Temperature | 40 to 105 degrees F |
| Operating Humidity | 10 to 90 percent non-condensing relative humidity |
| Voltage and Frequency | Auto-detecting 100-240 VAC, 50-60 Hz |
| Dimensions | 6.8 x 4.4 x 8.5 inches (H x W x D)* |
| Weight | 5.3 lb. |
